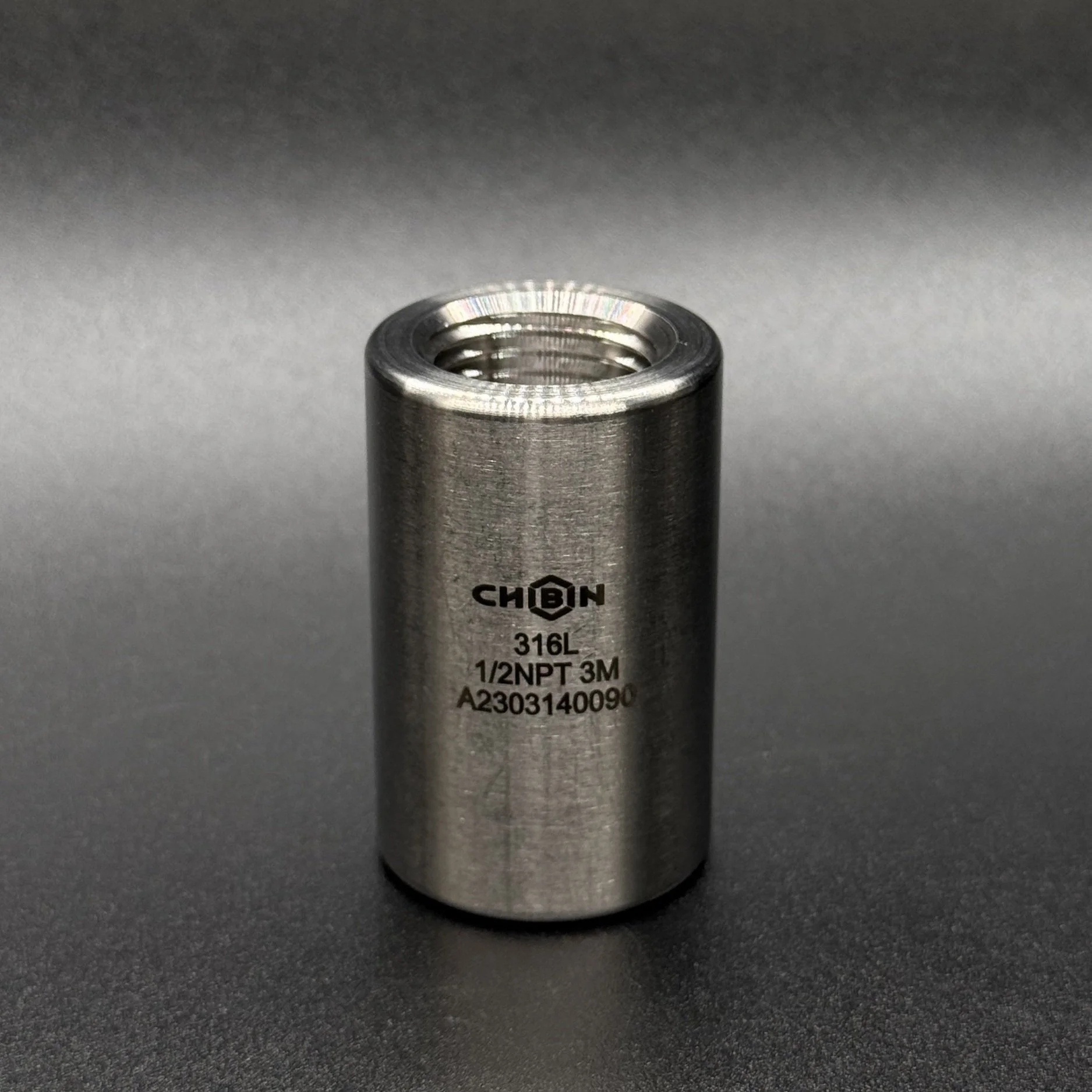

TFCG3 Series Threaded Full Coupling 3000Lb
Brand: Chibin
Series: TFCG3
Working Pressure: (1) 3M (3000Lb): 210 kgf/cm²
Size:
(1) Threaded: 1/4" ~ 2"
(2) Socket Weld: 1/4" ~ 2"
Thread: PT, NPT
Brand: Chibin
Series: TFCG3
Working Pressure: (1) 3M (3000Lb): 210 kgf/cm²
Size:
(1) Threaded: 1/4" ~ 2"
(2) Socket Weld: 1/4" ~ 2"
Thread: PT, NPT
Brand: Chibin
Series: TFCG3
Working Pressure: (1) 3M (3000Lb): 210 kgf/cm²
Size:
(1) Threaded: 1/4" ~ 2"
(2) Socket Weld: 1/4" ~ 2"
Thread: PT, NPT
High-pressure 3M threaded complete couplings are precision manufactured from stainless steel round bar stock. It can sustain 3000 psi working pressure. These full couplings are intended to connect pipes with lower outer diameters and are also appropriate for combining forged parts. The couplings' ends are fully threaded.
Features
Leak Free Design.
Fast and Easy Installation.
Space-saving.
Material: SUS304, SUS316, Corrosive resistance

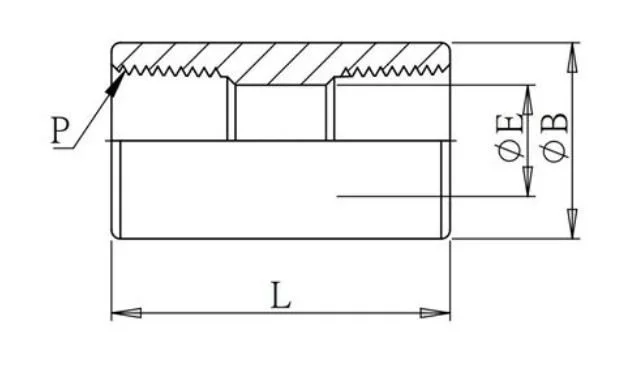

Dimensions
