APK Series Pilot kick 2-port solenoid valve (General purpose valve)
PHP 0.00
Brand: CKD
Series: APK
● NC (open when energized)
● Port size: Rc1/4 to Rc1
● Piston drive
Quantity:
Brand: CKD
Series: APK
● NC (open when energized)
● Port size: Rc1/4 to Rc1
● Piston drive
Brand: CKD
Series: APK
● NC (open when energized)
● Port size: Rc1/4 to Rc1
● Piston drive
FEATURES
✅ Unrestricted mounting
The body and sealant material can be selected to support various fluids, and steam specification is also available.
✅ Variation
Fompatible with various applications by combining a variety of coil options.
✅ Differential pressure 0 actuation
Pilot kick which actuates even at differential pressure 0.

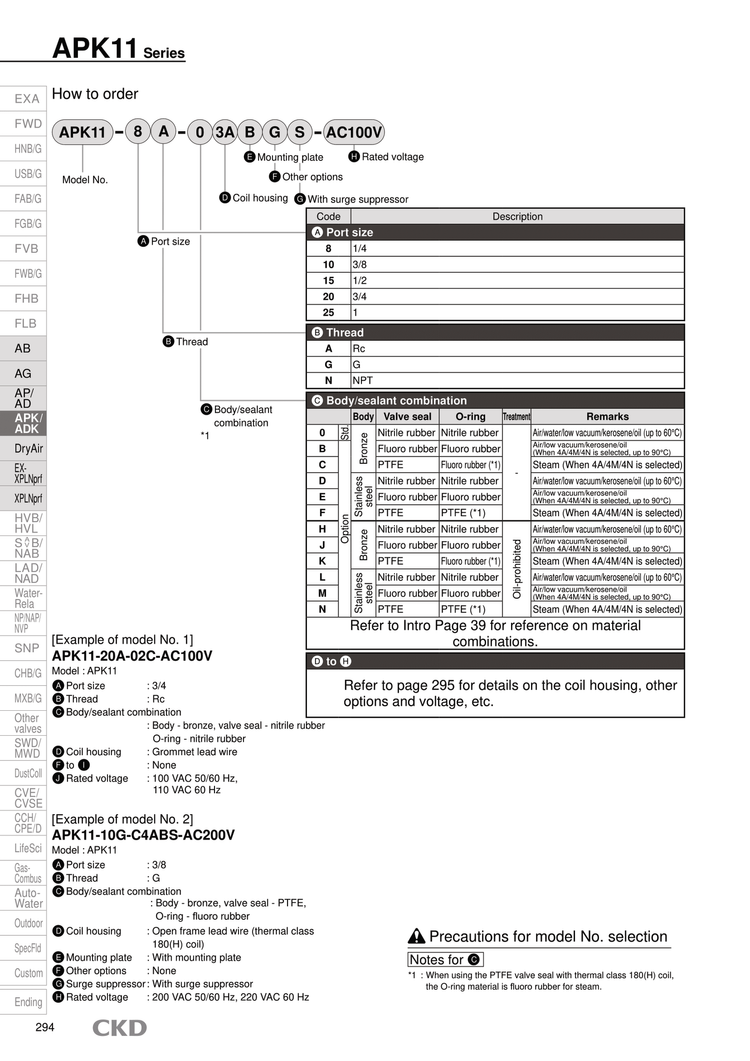

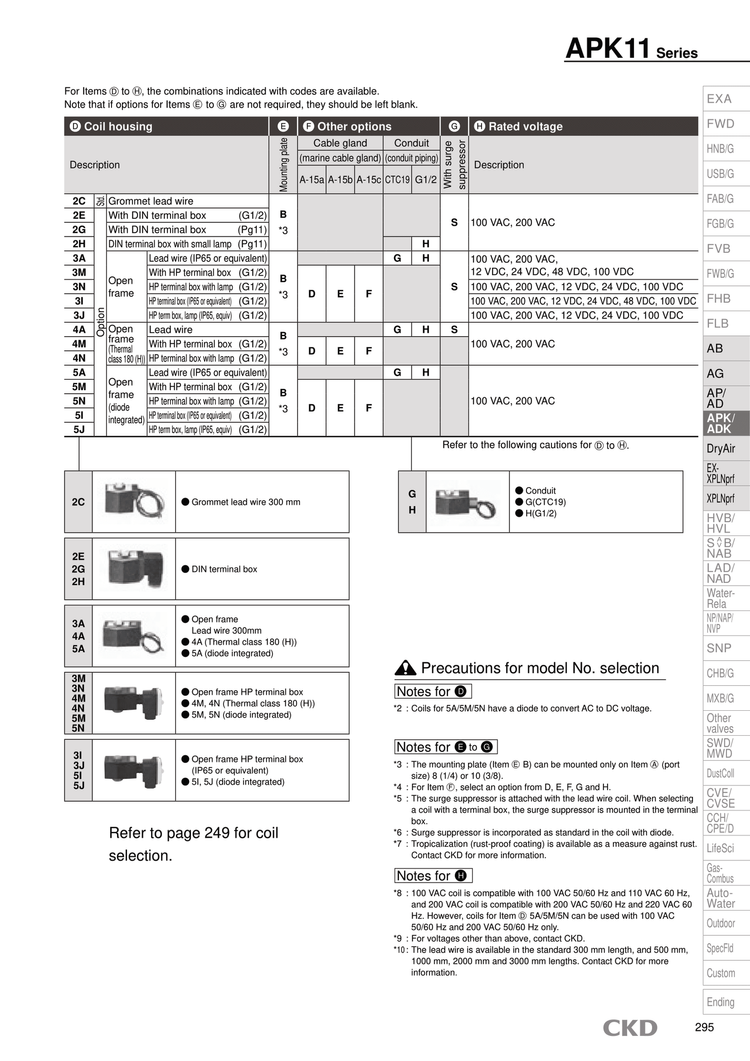

How To Order APK11 Series
APK11 Series Datasheet
Download
