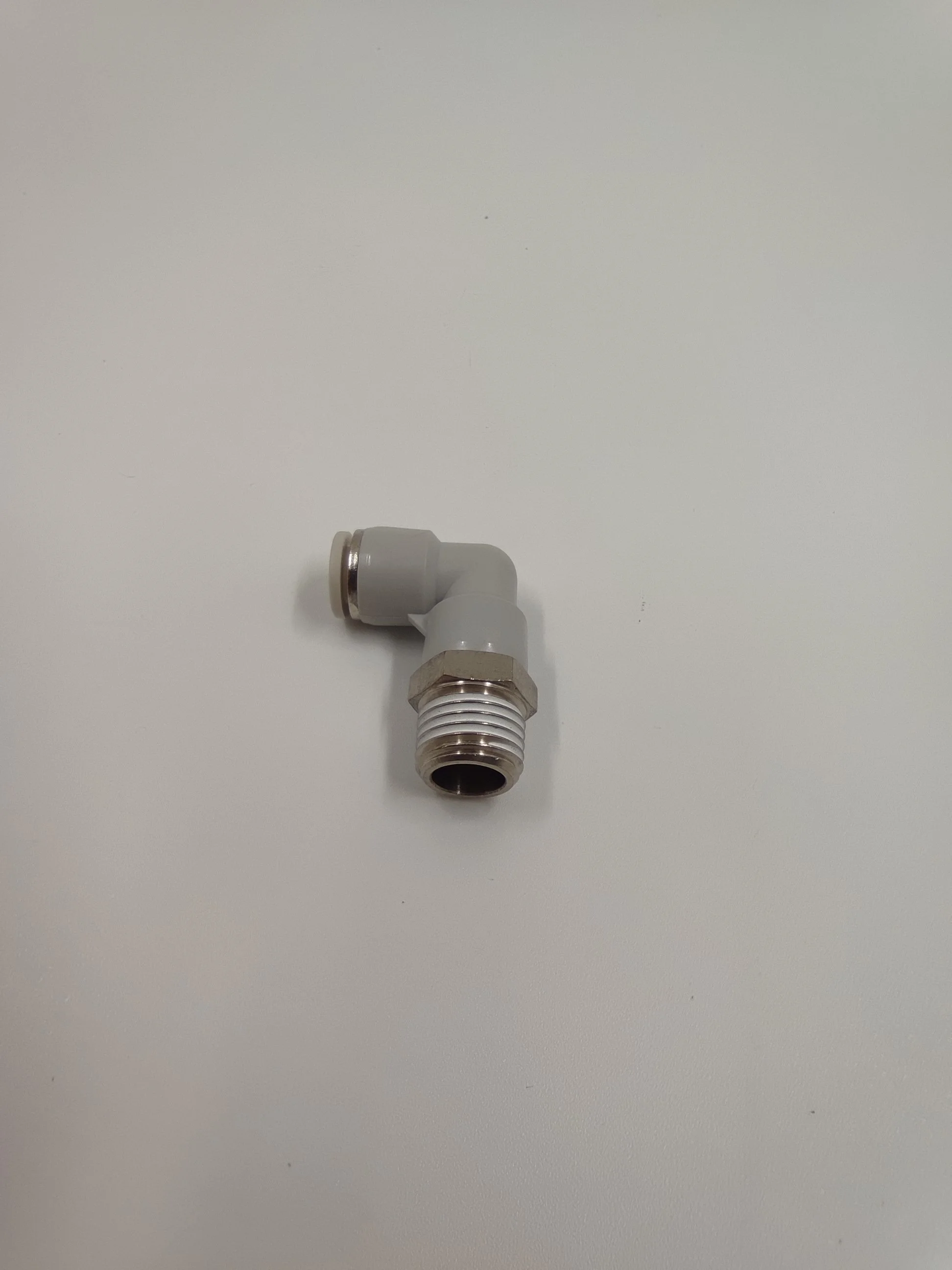

GW Series Elbow Threaded Push-in Fitting
Brand: CKD
Series: GW
Type: Straight threaded push-in fittings
Port Size: Port size M3 to 1/2 (Rc or R)
Working fluid: Compressed air
Max. working pressure MPa: 1.0
Ambient temperature °C: -10 to 60(no freezing)
Tube used: Soft nylon tube, Urethane tube
Brand: CKD
Series: GW
Type: Straight threaded push-in fittings
Port Size: Port size M3 to 1/2 (Rc or R)
Working fluid: Compressed air
Max. working pressure MPa: 1.0
Ambient temperature °C: -10 to 60(no freezing)
Tube used: Soft nylon tube, Urethane tube
Brand: CKD
Series: GW
Type: Straight threaded push-in fittings
Port Size: Port size M3 to 1/2 (Rc or R)
Working fluid: Compressed air
Max. working pressure MPa: 1.0
Ambient temperature °C: -10 to 60(no freezing)
Tube used: Soft nylon tube, Urethane tube
Fitting series for greatly reducing piping space
✅ Push-in fittingfor pneumatic piping.
✅ Compact size forspace saving.
✅ V-shaped packing seal to realize smooth insertion and accurate sealing.Smooth insertion and secure sealing.
✅ Freely rotating elbow union to make piping and removal work easier.
✅ Whitebody blends into the working environment. Electroless nickeling used for copper alloy sections
✅ Flame-resistant resin (equivalent to UL94 Standards V-0) used for GW Series body and push ring.
