TORMIN High Power SMD LED Explosion proof Floodlight BC9102S-L30

₱0.00

Brand: Tormin

Model: BC9102S-L30

Add To Cart

Brand: Tormin

Model: BC9102S-L30

Brand: Tormin

Model: BC9102S-L30

  • ■ The lamp adopts modular design, and the module can be quickly replaced without welding on site;

    ■ The lamp housing is made of copper-free aluminum, anodized or sprayed with high-grade anti-corrosive plastic powder. The mounting bracket and standard parts are made of SUS304 stainless steel, which can be used in high corrosive environments for a long time;

    ■Adopt a unique heat dissipation structure, semi-closed and transparent heat dissipation structure to ensure efficient heat conduction, radiation and convection, so as to ensure the service life of the LED;

    ■The illumination is uniform within the illumination range of the lamp, and the illumination angle is 80X100 degrees, which fully utilizes the light;

    ■ The protection level reaches IP66, which can effectively resist heavy rain;

    ■ Can be connected in parallel, eliminating the junction box and installation costs;

    ■ The light source adopts international brands, the whole light efficiency is greater than 125lm/W, and the power consumption is only 40% of the metal halide lamp;

    ■ All key components of the power supply adopt world-renowned brands, which are efficient and stable;

    ■ The bracket and standard parts could be customized by 316 stainless steel, which can be used in anti-corrosion environments such as offshore platforms for a long time.

  • 1. This product is widely used as work lighting in dangerous places such as petroleum exploration, oil refining, chemical industry, and power plants;

    2. Applicable to places with high humidity and corrosion protection;

    3. Suitable for explosive gas or dust environment zone 1, zone 2, or zone 21, zone 22;

    4. Suitable for IIA, IIB, IIC explosive gas environment;

    5. Suitable for temperature group T1~T6 group;

    6. Applicable ambient temperature is -40℃ ~ +40℃/ +55℃.

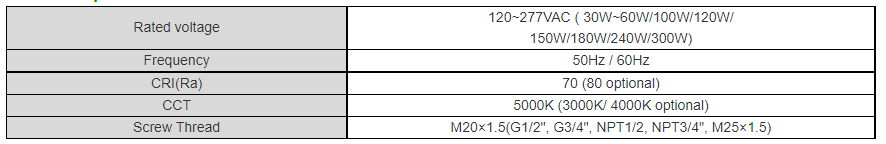

Technical Specification
